Items listed as replacement are functionally similar to the original part.OPERATING INSTRUCTIONS $5.00 ea.
M2866C Worm Drive Diesel M4071 Diesel & Electric Locomotive PARTS VIEW LISTING RFG # AF # DESCRIPTION PRICEMotor TUNE-UP Kit

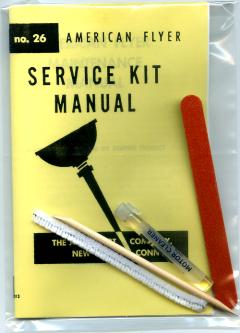

KD58 Universal Motor Cleaning KIT. Kit to
clean ALL American Flyer Motors. Kit
contains Cleaning Fluid, Tools and
Instruction Booklet. $16.95
KDE17 MOTOR TUNE-UP KIT for ALCO & GP-7, EP5
Kit contains 2 Brush & Holder, 2 Springs,
Cleaner, Applicator & Instructions 38.99
KDE65A MOTOR TUNE-UP KIT for Baldwin
Kit contains 2 Brush & Holder, 2 Springs,
Cleaner, Applicator & Instructions 39.99
K149 HORN KIT Capacitor and Resistor with
wiring instructions. 13.99
2600 Pantograph Eyelet 4/5.99
2601 Pantograph Spring 5.25
2602 Pantograph hold down w/eyelet 13.99
2602A Eyelet for hold down 2/3.99
2603 Chassis Axle Bushing set 4 pcs.
/ XA11463RP etc. 25.99
2605 Number Board GP-7 - White
w/o numbers 2/4.00
Substitute the engine number for
the XXX in the part number.
2605XXX Number Board GP-7 -White
w/numbers XXX 2/7.00
2606 Number Board GP-7 -Clear
w/o numbers 2/4.00
2606XXX Number Board GP-7 -Clear
w/numbers XXX 2/7.00
440 PA8999 Headlight Bulb all "S" 2/5.99 191 AF#P13N922 Midget flanged GILBERT HO 4.99
DE1 PA11409 Horn-plastic all "S" 2/15.99
DE1B Horn Black Metal for GP-7 9.99
DE2A Ladder-1 hole 4.99 DE2B Ladder-2 hole 4.99 DE2C Ladder-3 hole 4.99 S185 Ladder Pin 4/3.99 DE3A PA1015 Ladder Eyelet-black 4/5.99
DE4 Square Top Piece Air Vent- Alco 10.99 DE5 Headlite Lens - Alco 2/5.99 DE5A Headlite Lens - Baldwin 3.50 DE5B Headlite Lens - GP-7 2/3.50 DE6 Porthole Lens - Alco 2/5.99 DE7 P10800-A Retaining Ring 2/3.50 DE8 XA11447 Light Bracket 7.50 S319 #6x5/16 Chassis Screw 4/3.99 13 Headlite Lens - "HO" F9 3.99 DE13 XA11457 Field Clamp 5.00 S0 Screw for field clamp 4/3.99 S172 #4x3/16 Round head 4/3.99
KDE17 MOTOR TUNE-UP KIT
Kit contains
2 Brush & Holder (DE17B, XA11684)
2 Springs (DE14 P11000-L,DE15 P11000-R)
Cleaner, Applicator & Instructions 38.99
DE17 P10132 Brush Holder 2/5.99
DE18 XA11421RP Brush Bracket 20.99
DE18A P10119 Fiber strip 10.99
DE18B Eyelet to assemble brush bracket 2/3.99
DE18C P13A062-ARP-2 Late HO Fiber Strip 5.00
DE19 PA11453 Bearing Strap 5.49
DE20 PA11441 Worm Cover 5.49
S171 #2x3/16 Pan head 4/3.99
| Fields or rewinding with repairable trade-in ONLY, should be mailed to POB 562, Oyster Bay, NY 11771 Trade in must be sent before order is processed. DE22 XA12A036 Field - rewind only w/trade in ................... 20.00 DE22A XA11461 Field - rewind only w/trade in.................... 20.00 |
DE23 PA11343 Solid Wheel 7.00
PULL-MOR TIRESHELP
DE23B PA14A890 Pull-Mor Tire "S"
-replaceable band 4.00
DE23C P14A670 Pull-Mor Tire HO
- replaceable band 2/17.50
2503A PA15A034 Pull-Mor Tire F9
-replaceable band 5.00
PULL-MOR TIRE REPAIR BAND KITHELP
For replacing worn Pull-Mor Tires.
DE23TS Repair Band Kit for "S" Diesels
2 bands, cleaning board, cleaning fluid,
applicator, adhesive + instructions 29.95
DE23A XA14A891 Pull-Mor Wheel 12.95
DE23E Plastic bushing for insulated wheel 4.99
| CHASSIS with repairable trade-in ONLY, should be mailed to POB 562, Oyster Bay, NY 11771 Trade in must be sent before order is processed. DE24 XA11463RP Chassis-early rebushed w/trade in...... 45.00 DE24A XA12A074RP Chassis-late rebushed w/trade in... 45.00 |
DE24B PA11463 Thrust Plate 2/3.99 DE24C X14A757 Gear Box HO F9 20.00 DE24D PA11464 Oil Wick 2/3.99 DE25 P10800-B Retaining Ring 2/4.99 DE26 XA11473 Insulated Wheel 9.95 DE28 PA11505 360 Draw Bar 4.99 DE29 PA4362 Rivet 2/3.99 DE30 PA11364 Speaker - replacement 10.00 DE36 W83 Steel Washer 4/3.99 DE37 XA13A037 Yoke 5.00 DE38 PA11455 Fiber Bushing 4.99
| Armature for rewinding with repairable trade-inONLY, should be mailed to POB 562, Oyster Bay, NY 11771 Trade in must be sent before order is processed. DE39 XA14B873 Armature - late-rewind w/trade in............ 55.00 DE39A XA11445 Armature - early-rewind w/trade in........... 55.00 |
DE39B Armature Bearing 2/6.00
DE41 PA13A034 Field Clamp 5.00
S165 Screw for field clamp 2/3.99
S4A06 6-32x5/16 Special 4/3.99
S249 #2x1/4 Flat head 4/3.99
DE50 PA13A790 Rivet for coupler Ext. Bar 1.95
DE51 XA12A358 Coupler Ext. Bar KC 5.50
DE51A XA12A358 Coupler Ext. Bar
w/coupler KC 7.50
DE52 PA13A791 Rivet for coupler 1.95
DE52A P13N147 Eyelet for coupler HO 2/3.99
DE53 XA11596A Wheel & Chassis-tall 25.00
DE54 XA11598A Wheel & Chassis-short 25.00
54 PA10006 Axle for gear 4.00
54B PA15A226 Plain Axle- late style 3.50
DE56 PA12B059 Chassis-single motor 30.00
DE57 PA8715 Fiber Washer 3.50
DE58C End Step/GP-7
Knuckle Coupler versions T.O.S.
DE58D Wire Coupler Bar for 370 5.99
S4N30 #2x3/8 GP-7 Chassis Screw 4/3.99
DE59 W126 Steel Washer 4/3.99
DE60 W124 Fiber Washer 3.50
DE62 P10118 Spring Holder 5.95
DE63 PA14A169 Brush Mount 5.95
DE65A PA14A588-A Brush Holder 15.99
KDE65A MOTOR TUNE-UP KIT for Baldwin
Kit contains
2 Brush & Holder (DE65C PA14A588)
2 Springs (DE14 P11000-L,DE15 P11000-R)
Cleaner, Applicator & Instructions 39.99
DE66 W57 Lockwasher 4/3.99
DE67 PA9522 Oil Wick 2/.50
DE68 PA1405-D Steel Washer 4/3.99
| Field or rewinding orders with repairable trade-in ONLY, should be mailed to POB 562, Oyster Bay, NY 11771 Trade in must be sent before order is processed. DE70 XA14A969A Field-rewind w/trade in............................ 20.00 DE71 XA14B862 Armature - rewind w/trade in..................... 55.00 |
DE73 P325D Fiber Washer 3.99
DE74 W46 Lockwasher 4/3.99
DE75 PA6173 Terminal 2/3.99
DE77 W114 Spring Washer 2/3.99
DE78 W7 Steel Washer 2/3.99
S482 4-40x1 Fillister head 2/3.99
S4A81A 4-40x3/4 Filister head 2/.70
DE79A P13A049 Worm Shaft HO F9 7.50
DE79B X14A601 Worm Shaft HO Alco 7.50
DE81 PA14A597 Collector Spring 2/3.99
DE82 P10434 Collector C Clip 2/3.99
DE86A X14N475 Bottom Plate &
coupler HO F9 6.50
DE89 PA14A100 Insulation 3.99
DE91A PA11484 Coupler Arm/link 4.99
DE91B XA11484 Coupler Arm/link w/coupler 4.50
DE92 PA15A218 Gear-nylon/for axle 5.00
DE94 PA11448 Gear-nylon/for armature 5.00
95 PA11500 Four Conductor Cable 3.50
| Reverse unit orders with repairable trade-in ONLY, should be mailed to POB 562, Oyster Bay, NY 11771 Trade in must be sent before order is processed. 99B XA10587E Reverse Unit f-n-r w/trade in........................ 65.00 |
Kit to replace worn reverse unit fingers and clean units. Kit contains new upper and lower fingers, cleaning solution, applicator and instructions. K102 Reverse Unit Service Kit 16.99
Kit to clean sticky reverse units. Kit contains cleaning solution, applicator and instructions. K102B Reverse Unit Cleaning Kit $13.99 102 XA9612CRP Top finger- "S" 3.99 103 XA9612BRP Bottom finger-"S","O","HO" 3.99 104 XA8716 Reverse Unit Drum 15.00 DE102 Wire Hand Rail for front GP-7 2/4.99 KDE104 Diesel Roar replacement Kit 24.95
DE105 PA30A039 Axle Bearing for F9 2/5.99
DE106 PA30A021 Brush bracket
bearing for F9 5.99
111 PA10209 Bushing- fiber shoulder 5.99
K119B Pick-up Shoe Kit for Alcos 2 pick-ups,
2 springs + instructions 6.00
119C Pick up shoe box T.O.S.
134 XA10469 Link coupler 2/3.50
K134A XA12A047 (2)Knuckle Coupler Kit 2/8.99
135 PA10467 Link coupler pin 2/3.99
138 PA12A355-A Leaf Spring 2/3.50
| Reverse unit orders with repairable trade-in ONLY, should be mailed to POB 562, Oyster Bay, NY 11771 Trade in must be sent before order is processed. 180 XA14C429 Reverse Unit w/trade ...................................30.00 |
203 PA10005 Axle-plain 4.50 203B PA15A225 Axle for gear Baldwin 4.50 DE107 Manual reversing switch 5.50 see also Decals-Stickers & Hardware D370 GP-7 Number Board Decals 370 pr./4.99 D371 GP-7 Number Board Decals 371 pr./4.99 D372 GP-7 Number Board Decals 372 pr./4.99 D374 GP-7 Number Board Decals 374 pr./4.99 D375 GP-7 Number Board Decals 375 pr./4.99 D377 GP-7 Number Board Decals 377 pr./4.99 D378 GP-7 Number Board Decals 378 pr./4.99 D234 GP-7 Number Board Decals 234 pr./4.99 D21821 GP-7 Number Board Decals 21621 pr./4.99 D21831 GP-7 Number Board Decals 21631 pr./4.99 ST370 GP-7 Number Board Stickers 370 pr./4.99 ST371 GP-7 Number Board Stickers 371 pr./4.99 ST372 GP-7 Number Board Stickers 372 pr./4.99 ST374 GP-7 Number Board Stickers 374 pr./4.99 ST375 GP-7 Number Board Stickers 375 pr./4.99 ST377 GP-7 Number Board Stickers 377 pr./4.99 ST378 GP-7 Number Board Stickers 378 pr./4.99 ST234 GP-7 Number Board Stickers 234 pr./4.99 ST21821 GP-7 Number Board Stickers 21621pr./4.99 ST21831 GP-7 Number Board Stickers 21631pr./4.99Water Slide Decals
Apply using warm water.
D1 Silver Streak sides $13.99 set
D2 Silver Streak nose 13.99 ea.
D3 Comet sides 13.99 pr.
D4 Comet nose 13.99 ea.
D5 370-371 GM side shield 13.99 pr.
D6 370-371 GM sides 13.99 pr.
D7 T & P GP7 shield 13.99 pr.
D8 Northern Pacific nose
- Reefer side 13.99 pr.
D10 Rocket sides 13.99 pr.
D11 Rocket nose 13.99 pr.
D12 Silver Flash sides 13.99 pr.
D13 Silver Flash nose 13.99 ea.
D14A Santa Fe nose - Santa Fe 13.99 pr.
D14B Santa Fe nose - Chief 13.99 pr.
D15A S. F. Indian - Santa Fe 13.99 pr. D15B S. F. Indian - Chief 13.99 pr. D15C S. F. Indian - blank 13.99 pr.
D16AB S. F. # 360-361-364 set 13.99 pr.
D16CDF S. F. # 470-471-473 set 13.99 pr. D16E S. F. # 472 6.99 pr.
Self Stick Decals Adhesive backed. Trim, peel and apply.
SD1 Silver Streak sides $13.99 pr.
SD2 Silver Streak nose 13.99 ea.
SD3 Comet sides 13.99 pr.
SD4 Comet nose 13.99 ea.
SD5 370-371 GM side shield 13.99 pr.
SD6 370-371 GM sides 13.99 pr.
SD7 T & P GP7 shield 13.99 pr.
SD8 Northern Pacific nose
- Reefer side 13.99 pr.
SD10 Rocket sides 13.99 pr.
SD11 Rocket nose 13.99 pr.
SD12 Silver Flash sides 13.99 pr.
SD13 Silver Flash nose 13.99 ea.
SD14A Santa Fe nose - Santa Fe 13.99 pr.
SD14B Santa Fe nose - Chief 13.99 pr.
SD15A S. F. Indian - Santa Fe 13.99 pr. SD15B S. F. Indian - Chief 13.99 pr. SD15C S. F. Indian - blank 13.99 pr.
SD16AB S. F. # 360-361-364 set 13.99 pr.
SD16CDF S. F. # 470-471-473 set 13.99 pr. SD16E S. F. # 472 6.99 pr.
SD19 Hand Car shield
- Silver Bullet nose 13.99 pr.
SD20 Hand Car w/wings 13.99 pr.
SD30 SANTA FE 13.99 pr.
SD31 BUILT BY GILBERT 13.99 pr.
Stickers with adhesive backing.
ST1 Northwestern sides - Baldwin 13.99 pr.
ST4 S. F. Cross 13.99 pr.
ST5 N. H. Electric - nose 13.99 pr.
ST9 Missouri Pacific nose 13.99 pr.
ST17 F9 Union Pacific Nose 13.99 pr.
ST18 F9 Boston & Main Nose 13.99 pr.
ST19 F9 Santa Fe Nose 13.99 pr.
ST20 F9 Great Northern Nose 13.99 pr.
ST26 Union Pacific nose 13.99 pr.
ST27 N. H. alco nose 13.99 pr.
ST46 N. P. F9 nose HO 13.99 pr.
ST51 F9 Rio Grande Nose 13.99 pr.
ST52 F9 Burlington Nose 13.99 pr.
ST53 B & O 421 HO 13.99 ea.
ST54 B & O 422 HO 13.99 ea.
ST55 B & O 31007 HO 13.99 ea.
ST56 B & O 31009 HO 13.99 ea.
ST57 Lackawanna 420 HO 13.99 ea.
