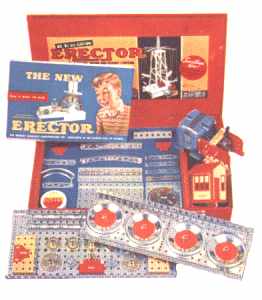

GILBERT ERECTOR PARTS SERVICE
PART #     DESCRIPTION                      PRICE
ST40   Erector Set Pennant /white letters   $11.99

ST40A  Erector Set Pennant /tan letters     $11.99

E101   Horse for Merry Go Round (card stock) 11.99

E102   Parachute Man                         11.99

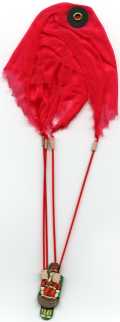

NU     Complete Parachute- white
NU-R   Complete Parachute- red
E102W  Fiber Washer for parachute
GS52   Eyelet  for parachute

E103   Box Label Yellow 6" Sticker           11.99


E103A  Box Label Black 6" Sticker            7.00
ST59 Parts can Label                         11.99
ST59A Parts can Label Erector                11.99 ea.
ST59B Parts can Label MYSTO                  11.99 ea.

Stickers and other printed items, require trimming.

LITERATURE REPRINTS $5.00 Ea.

M-8072-75  Separate Parts Sheet
M4630      Separate Parts Order Form
M8130      Hookup Instruction for Battery Packs
           Musical Ferris Wheel Sound Kit

PARTS

2460W   P14A686 Rocket for ERECTOR launcher 12.50
2460Y   P14A686 Yellow/Red Rocket           24.95

AF      SMALL HOOK                           2.00
N-1     HEX NUT                            4/3.99
NH      LAMP SOCKET UNIT                    12.50
P-52    LADDER CHAIN                PER FOOT 5.99
P55 MOTOR PARTS
XA11077 Armature years 1947-1953.................................... 35.00
XA11077 without trade in                    55.00
XA9547 Field Coil...................................................................... 20.00
XA9547 without trade in                     40.00
PA9522 Oil Wick for brush bracket          4/1.20
XA9565A Brush bracket/coil spring            5.00
K58 BRUSH KIT Pair of brushes, springs, oil wick
    plus cleaning fluid and applicator with
    instructions for motor service.          9.75
PA10754  Cap for coil spring               2/11.99

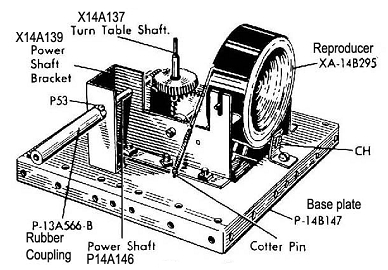

SOUND KIT PARTS
P8554A  TURNTABLE                           10.00
PA10721 ADAPTOR                             10.00
PA1139  FIBRE WASHER                          .75
S-11    SET SCREWS                         4/3.99
S-36    3/16 X 6-32 SCREW                  4/3.99
S-51    1/4 X 8-32 SCREW                   4/3.99
S-52    1/2 X 8-32 SCREW                   4/3.99
S-57    1 3/8 X 8-32 SCREW                 4/3.99
S-62    7/8 X 8-32 SCREW                   4/3.99
S-67    1 3/4 X 8-32 SCREW                 4/3.99
W1A82   WASHER                             4/3.99
X14A134 CAM SHAFT ASSEMBLY                  15.60
X14A137 TURNTABLE SHAFT ASSEMBLY            15.75
X14A139 POWER SHAFT BRACKET                   .85
XA14B269 NEEDLE                              3.99
DS      COTTER PIN                           1.25

AE      SPRING                               5.99

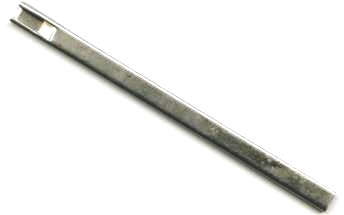

MW      Nut Holder                          10.00
NI      Bulb 1½ Volt                         2.00
OA      Bulb 18 Volt                         2.00
P34     Hank of String (blue)     per ft.    3.99
P12N677 Red Bulb                             2.00

2407    Motor Line Cord w/plug Gray          15.95

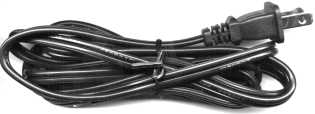

2407A   Motor Line Cord w/plug Black         15.95
SMOKE FLUIDOriginal Formula Smoke Fluid
Just like the original!!!!!
This is the original formula smoke fluid.
It's the best fluid you can use in all
liquid smoke units as it won't clog the wick.
Big 2 oz. bottle produces rich smoke in seconds.
With the CEDAR AROMA that brings back
memories. Don't be fooled by imitation fluids,
that claim to be "similar".
 1115    SMOKE FLUID 2 oz                  $13.99

 K2514   SMOKE KIT - Kit contains Funnel,
         Stack Cleaner plus Instructions   $8.99

SMOKE UNIT PARTS
HELP
for Smoke Kit units
All complete Smoke Unit orders with repairable trade in ONLY.
Trade in must be sent before order is processed.

 2514   Funnel-for adding smoke fluid        4.50
 K61D   XA10527 Wick w/wire coil kit Units.
        Contains wick and wire coil, plus
        instructions for replacing wick and
        coil assembly.                       12.99
 61B    Wick for all smoke units  PER FT.    7.00
 61C    Wire for all smoke units  PER FT.    3.99
 61F    PA10059 Solder Lug                 2/2.00
 62     PA10520 Pin for smoke piston          .50
 63     PA10518 Piston                       11.99
 68     PA10671 Smoke Gear                   4.50
 69     PA10162 Smoke Gear Stud              3.00

SMOKE KIT

 K2531   Smoke Motor Service Kit-
          Brushes, Cleaner, Oil Wick         18.50
 2530KIT Bellows Unit Repair Kit- Bellows,
                         Glue + Instructions 18.95

 K1610 Smoke Bellows Tool Kit- Tool
             + Bellows, Glue + Instructions 32.95
THE R.F. GIARDINA, CO.

 K2530D Kit containing all parts and instructions
        to rebuild smoke box.
        Wick with Wire Coil, all gaskets, plates,
        insulator, eyelets and terminals.   30.50

 K2530  Complete Smoke Overhaul Kit-
        Contains all parts to replace bellows
        plus parts to rebuild smoke box, also
        contains motor service parts, cleaning
        fluid, applicator and instructions. 38.00

 2530F  XA10724-A Complete Bellows assembly 45.00
 2530A  PA10167 Bottom Gasket for smoke box  2.50

 2530B  Top Gasket for smoke box             3.95

 2530C  PA10184 Heat Element top Plate/only 15.00

 2530E  Insulator for wick                   3.50
 2532   PA10194 Top Filler Screw             3.00

 2532A  PA10326 Fuel Nozzle - K5 & HO        6.95
 2532B  PA10327 Fuel Nozzle - "S" Hudson     6.95

 2533KIT All parts for conversion from
         bellows to cylinder + Instructions 39.95

 2533A  PA10771 Piston Lever                 4.95
 2534   PA10195 Rubber Smoke Hose 12"        1.25
 2535   PA10475 Brush Bracket
                 -plastic bracket only      15.00
 2535A  XA10475 Brush Bracket
                   w/bearing & springs      25.00
 2535C  Brush Bracket early for
                  thin field-bracket only-  15.00
 2535D  Brush Bracket early -
                  w/bearing & springs       25.00

 2535B  Brush bracket bearing               10.00
 2537   Brush Spring-w/eyelet                3.00

These items sold with a trade in only.
Mailed to POB 562, Oyster Bay, NY 11771
Trade in must be sent before order is processed.

2536 XA10175 Armature-rewind w/trade............................. 50.00
2542 XA10461 Field 12 plates -rewind w/trade................. 25.00
2542A Field early thin 10 plates -rewind w/trade............... 25.00
2541 XA10149A Smoke Box with trade only........................ 25.00
 2543   Smoke Unit base                     25.00
 2544   PA10194 Fuel Stud front of smoke box 6.95
 S249   #2x1/4 Flat head                   4/3.99
 S233   4-40x1/4 Flat head                 4/3.99


The following parts are original used condition, or
new manufacture. Subject to availability.
Not all items in stock at all times.
Order may be held up to 30+ days. Back Orders
not able to be filled within 30 days will be cancelled.

Note:
Part finishes vary between tin, cadmium and nickel.
Some items may have light rust or paint loss.
Stock availability changes rapidly.
We cannot quote stock availability.
We will ship what is on hand on a first ordered basis.

ALL SALES ON USED PARTS ARE FINAL,
ABSOLUTELY NO RETURNS.

N21     8-32 Square Nut                    4/3.99
P11     24 Tooth Gear, Flat                  3.00
P15     Coupling                             3.00
P24     Crank                                3.99
P37     Collar                               3.99
P38     3 Hole Strip                         2.00
P40     Screw Eye                            3.99
P42     9 Hole Strip                         2.00
P49     18-Tooth Gear                        5.00
P57A    2 1/8" Axle                          1.50
P57C    4" Axle                              1.50
P57D    6" Axle                              2.00
P57E    8" Axle                              2.00
P57F    12" Axle                             2.50
P57HB   1 3/8" Axle                          1.50
P57JA   7 1/2" Axle                          2.00
P57K    10" Axle                             2.50
P57N    3 1/4" Axle                          1.50
A-49    Motor w/Gearbox                     30.00
A       2½" Girder                            .50
B       5" Girder                             .75
C       10" Girder                           3.99
D       2 1/2" Curved Girder                  .50
E       5" Curved Girder                     3.99
F       5 Hole Strip                          .50
G       7 Hole Strip                         3.99
H       11 Hole Strip                        3.99
I       21 Role Strip                        1.50
J       41 Hole Strip                        2.00
K       11 Hole Strip Bracket                2.50
L       21 Hole Strip                        3.00
M       Small Double Angle                   3.99
N       Long Double Angle                    3.99
O       Pawl                                 2.00
P       Small Base Plate                     4.00
Q       Large Base Plate                     6.50
R       Dash Plate                           7.00
S       Large Base Plate 21 holes            9.00
AH      Small Triangle                       3.50
AL      Collar Formed                        6.00
AR      8 Hole Strip                         2.50
AS      2 7/8" Axle Rod                      1.50
AT      4" Axle Rod                          1.50
AV      7-Hole Strip Bracket                 5.00
AX      19 3/4" Axle Rod                    10.00
BE      6" Angle Girder                      2.00
BH      Solid Collar                         2.00
BK      8-32 Wing Nut                        2.00
BL      Small Washer                       4/3.99
BN      Regular Turret Plate                  .50
BT      Pierced Disc                         1.50
CH      Right Angle                          2.00
CJ      36-Tooth Gear                        5.00
CX      1" Axle Rod                          1.50
CY      5" Axle Rod                          1.50
CZ      7" Axle Rod                          2.00
DA      10" Axle Rod                         2.50
DB      Motor Pulley                         1.50
DP      12" Angle Girder                     3.99
DT      1 Hole Set Screw Coupling            4.50
DU      1/4" Diam. Axle 8 1/2"               2.00
DV      6" Curved Beam Girder                8.00
EA      25 hole Flat Base Plate              9.00
EB      1/4" Collar                          9.00
EC      Giant Axle-29" long, 5/16" diam.    10.00
EI      Standard Gear Box Side Plate         3.00
EM      Universal Car Truck                  4.00
FV      13" Axle Rod                        40.00
GX      8-Hole Double Angle Bracket          2.00
KT      1/4" Axle Rod, 3 5/32" Long          4.00
KU      1/4" Axle Rod, 3 5/8" Long           4.00
MC      Base Plate 1" x 2 1/2"               2.00
MD      Base Plate 2 1/2" x 5"               4.00
ME      Base Plate 1 1/2" x 4"               3.00
MF      Base Plate 1 1/2" x 5"               3.00
MH      Nickel Rim, 3" Disc Wheel            3.00
MM      Wrench                               3.99
MN      12" Base Plate                       4.00
MO      3" Angle Girder                      4.00
MV      Flat Car Truck                       2.00
MY      2 1/2" x 2½" Base Plate              2.00
NJ      Battery Holder                       6.00
NK      Ratchet                              2.00
NL      Bolster Bracket                      2.00
NS      41 Hole strip formed                 2.00
NT      Cone                                 6.00
NY      3 1/8" Axle Rod                      1.50
1       2 1/2" Wheel                         2.00
3       2 1/2" dia. Plate                    3.00
4       3x3 Hole Corner Plate                3.00
5       Car Truck                            3.00
6       Long Double Angle                    3.00
7       5 Hole Girder                        3.99
8       9 Hole Girder                        3.99
11      17 Hole Angle Girder                 1.50
15      5x9 Flat Plate                       3.00
17      21 Hole Angle Girder                 2.00
18      5x21 Hole Base Plate                 4.00
28      135* 7 Hole Strip                    2.00
32      5 Hole Girder                        3.99
34      9 Hole Girder                        3.99
38      17 Hole Girder                       1.50
45      5x5 Hole Base Plate                  3.00
46      5x9 Hole Base Plate                  3.00
47      5 Hole Circular Girder               2.00
48      9 Hole Circular Girder               2.00
51      9 Hole Curved Girder                 3.00
70-A    2 1/8" Axle                          1.50
70-B    2 7/8" Axle                          1.50
70-C    4" Axle                              1.50
70-D    6" Axle                              1.75
70-E    7" Axle                              2.00
74      28T Sprocket                         5.00
75      14T Sprocket                         5.00
827     Single Sheave                        5.00
USED ERECTOR CASES
Type           Condition                    Price

4 1/2 Red Case      Good-Dents on lid-Latches OK-
                    Cover Label some edge damage-
                    Inside Label Excellent   5.00
10042 Radar Scope   Cover Very Good- Latch rusty-
                    Rust inside and bottom   5.00

MINIMUM $9.75 Shipping on all cases.
ERECTOR MANUAL
HOW TO MAKE'EM BOOK
Type           Condition                    Price
Stock Photo
M6341               Good- Some writting on cover
                          stains on rear    15.00
Stock Photo
M6847-M6734         Very Good- Light stains 15.00
M6847-M6734         Excellent-              20.00
Stock Photo
M4712               Good- Piece of cover 1x1 1/2
                          cut out, light stains.
                                            15.00
ONLY RFG Offers Online immediate
downloads of Literature.

The Quickest way to get RFG and Original Literature and other information.
RFG Maintains the largest library of Gilbert Literature.
PDF files are viewable on all systems with a PDF file reader.
See the DOWNLOAD Page.
